Flow and Flow Rate Measurement Devices
Continuous Flow, Flawless Verification
A critical testing stage for verifying the functional integrity of products that require continuous flow, such as valves, pipelines, exhaust systems and catheters. Our differential micro mass flow and flow rate testing devices instantly detect blockages or unwanted leaks on your production line within seconds, without waiting for pressure decay.
BT6000 Series - Mass Flow Test Device
Specially developed for large-volume parts or flexible products where the pressure decay method is insufficient. Thanks to advanced differential mass flow technology, it directly measures the instantaneous leak amount of the air passing through the system with a micro resolution of 0.001 ml/min. It provides continuous, fast and reliable quality control for flexible and large-volume industrial systems.
Micro-Level Flow Sensitivity
Thanks to mass flow sensors, it instantly detects even the smallest air or gas molecule movement. With superior resolution down to 0.001 ml/min, it captures the smallest leaks on your production line without causing rejects.
Instant Measurement Independent of Volume
Unlike traditional tests, you do not need to wait for stabilization time when testing large-volume or expanding flexible parts. By instantly reading the leak amount, it significantly shortens your test cycles.
Smart Data Management and IoT
Fully integrates with your Industry 4.0 vision. You can remotely monitor test reports generated in the format you need via IoT technology, receive automatic email reports, or transfer them directly to your computer in Excel format via USB.
Technical Infrastructure and System Features
Measurement Resolution & Scale: 0.001 ml/min micro resolution with advanced differential mass flow sensor. Wide flow rate and test pressure configurations tailored to the application.
Automation & PLC Integration: 24V programmable 7 Input / 7 Output port, capable of directly controlling external automation systems, conveyors and valves.
Test Modes: Continuous Flow, Leak Testing / Flow-Based Leak Detection, Blockage Verification and Function Tests.
Industry 4.0 Communication: RS232/RS485 Modbus RTU as standard; optional Profinet, EtherCAT and Ethernet TCP/IP network connectivity.
Interface and User Management: User-friendly 7-inch color touchscreen, memory for more than 500 different test programs, and operator authorization via mechanical key.
Flexible Units and Verification: Testing flexibility in international flow units such as ml/min, L/min, sccm and cm³/h, with instant calibration verification through the front-panel master port.
BT7000 Series - Flow Rate Measurement Test Device
Developed for the most precise verification of continuous flow or blockages in gas flow systems, valve mechanisms, HVAC and pipelines. Equipped with MEMS and laminar flow testing technology, the BT7000 supports your zero-defect production strategy by verifying the optimum amount of air/gas that must pass through the part within seconds.
High Accuracy with Laminar and MEMS Technology
With sensor architecture developed in accordance with gas flow dynamics, it performs smooth, laminar and absolutely accurate readings without being affected by turbulence. It is indispensable for valve and manifold production.
Flawless Blockage and Passage Verification
Instantly analyzes the smallest restrictions / blockages or unwanted excessive flow / leakage conditions in medical catheters, capillary tubes or exhaust lines.
Smart Data Management and IoT
Fully integrates with your Industry 4.0 vision. You can remotely monitor test reports generated in the format you need via IoT technology, receive automatic email reports, or transfer them directly to your computer in Excel format via USB.
Technical Infrastructure and System Features
Measurement Resolution & Scale: MEMS/Laminar-based high-precision flow reading technology. Wide measurement scale that can be configured according to your project requirements on an L/min basis.
Automation & PLC Integration: 24V programmable 7 Input / 7 Output port, capable of directly controlling external automation systems, conveyors and valves.
Test Modes: Flow Rate Measurement, Restriction/Blockage Analysis, Passage Function Verification and Valve Opening/Closing Point Detection.
Industry 4.0 Communication: RS232/RS485 Modbus RTU as standard; optional Profinet, EtherCAT and Ethernet TCP/IP network connectivity.
Interface and User Management: User-friendly 7-inch color touchscreen, memory for more than 500 different test programs, and operator authorization via mechanical key.
Flexible Units and Verification: Flexible reading in international units such as L/min, ml/min and sccm, with practical verification via the front-panel port using a master jet.
Perfect
Your System

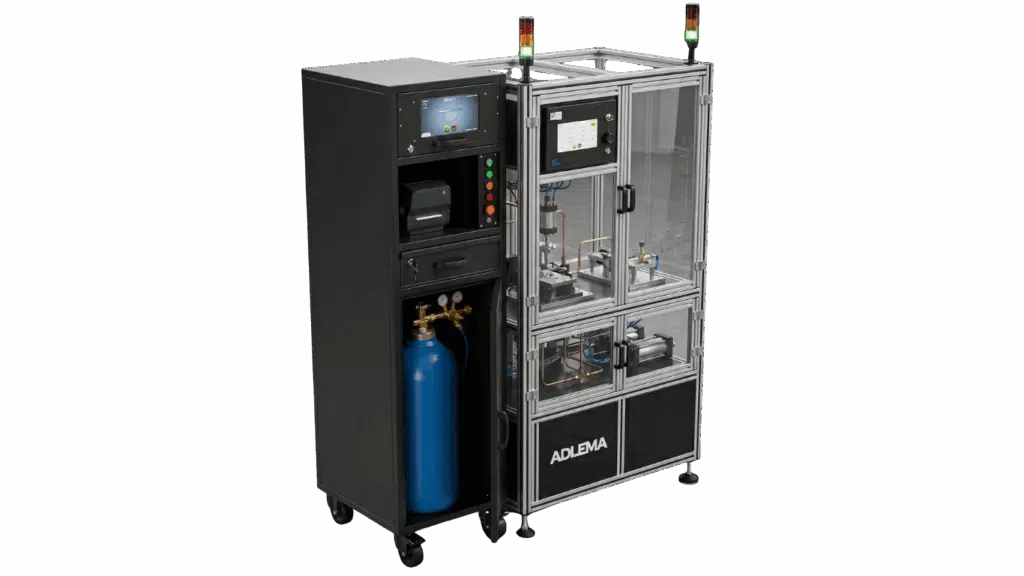

Eliminate manual processes in leak and flow testing. Standardize your testing operations with ergonomic equipment integrated into your production line and traceability systems that provide end-to-end data recording.
